PE
- Series
|
|
Water
- Ring ( Vacuum Pumps )
|
| |
 |
| Special
Features : |
- Ease
of Maintenance
Without disturbing
suction line, Discharge
line, water line piping
and pump base bolts,
pump can be dismantled
and inspected from
inside in matter of
minutes.
|
- Reliable
& Versatile
Pumps can handle
air, gases and vapours
contaminated with
dust and nonabrassive
particles. These will
also handle considerable
quantity of water
or liquid entering
along with the gases.
These pumps are simple
in construction smooth
running. Pumps are
free from valves and
gears.
Pumps are usually
driven by a direct
coupled electric motors.
|
|
|
| |

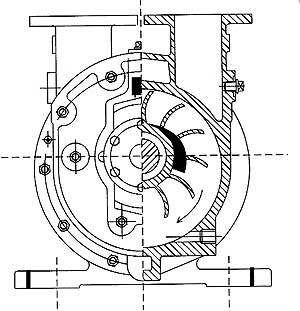

| Principle
of Operations |
| "PE"
Series liquid ring
Vacuum Pumps are
positive displacement
type and consists
of an Impeller which
is located eccentric
in the stator. The
liquid introduced
preferably water
is set into rotary
motion by blading
thus forming a water
ring concentric
with line casing.
Cells are formed
between the ring
and the blades of
the impeller which
vary in volume from
a maximum to a minimum
with each revolution.
The liquid enters
the working chamber
through the openings
in the lateral control
disc and is compressed
by the decrease
in volume of the
cells. It then flows
out through the
discharge openings. |
|
| |
| Performance |
when
used as a vacuum
pumps these pumps
will develop vacuum
of 28" Hg column
(710 mm) with water
as sealant at 300C
and barometer at
30" (760 mm)
mercury.
When used as a compresser
it will develope
pressure up to 25
PSIG. |
|
|
|
|
| |
| Application |
| "PE"
Series Vacuum pumps are used
extensively for the following
applications. |
| Paper
Industry |
:
|
For
dewatering the paper
pulp passing through
the foundries section. |
| Textile
Industry |
:
|
For
dewatering and partial
drying of cloth in dyeing
and finishing plants. |
| Filter
Plants |
:
|
For
recovery of valuable
chemicals by efficiently
washing and separating
the filtrate from filter
cake. |
| Chemical
Plants |
:
|
For
boiling and concentrating
liquids under vacuum. |
|
| Ship
Building, Dairies, Food Processing
Plants. Also used on packaging
machines, Filling machines &
forming machines. |
|
| |
| |
|
|
